Exploring and Visualizing BioSCape LVIS and GEDI Data

from glob import glob
import numpy as np
import pandas as pd
import earthaccess
import geopandas as gpd
import requests as re
import s3fs
import h5py
from os import path
from datetime import datetime
from shapely.ops import orient
from shapely.geometry import Polygon, MultiPolygon
import matplotlib.pyplot as plt
from shapely.geometry import box
import dask.dataframe as dd
from harmony import BBox,Client, Collection, Request, LinkType

# esri background basemap for maps
xyz = "https://server.arcgisonline.com/ArcGIS/rest/services/World_Imagery/MapServer/tile/{z}/{y}/{x}"
attr = "ESRI"

# works if the EDL login already been persisted to a netrc
try:
    auth = earthaccess.login(strategy="netrc")
except FileNotFoundError:
    # ask for EDL credentials and persist them in a .netrc file
    auth = earthaccess.login(strategy="interactive", persist=True)

doi="10.5067/XQJ8PN8FTIDG" # LVIS L1B doi
query = earthaccess.DataGranules().doi(doi)
query.params['campaign'] = 'bioscape'
l1b = query.get_all()
print(f'Granules found: {len(l1b)}')

def get_granule_index(granules, dts):
    """returns granule index matching timestamp"""
    for index, val in enumerate(l1b):
        if f'_{dts}' in val.data_links()[0]:
            return index
# index of granule with R2404_041222 datetime stamp
i = get_granule_index(l1b, 'R2404_041222')
l1b[i]

# download files
downloaded_files = earthaccess.download(l1b[i], local_path="downloads")

l1b_i= f'downloads/{path.basename(l1b[i].data_links()[0])}'
with h5py.File(l1b_i) as hf:
    for v in list(hf.keys()):
        if v != "ancillary_data":
            print(f"- {v} : {hf[v].attrs['description'][0].decode('utf-8')}")

with h5py.File(l1b_i) as hf:
    l_lat = hf['LAT1215'][:]
    l_lon = hf['LON1215'][:]
    l_range = hf['Z1215'][:] # ground elevation
    shot = hf['SHOTNUMBER'][:] # ground elevation
geo_arr = list(zip(shot, l_range,l_lat,l_lon))
l1b_df = pd.DataFrame(geo_arr, columns=["shot_number", "elevation", "lat", "lon"])
l1b_df

l1b_gdf = gpd.GeoDataFrame(l1b_df[['shot_number', 'elevation']], crs="EPSG:4326",
                           geometry=gpd.points_from_xy(l1b_df.lon,
                                                       l1b_df.lat))
m = l1b_gdf.sample(frac=0.01).explore("elevation", cmap = "plasma", tiles=xyz, attr=attr)
# plot a single shot as red
i = np.where(shot==54132593)[0][0]
l1b_gdf.iloc[[i]].explore(m=m, marker_type="marker")
m

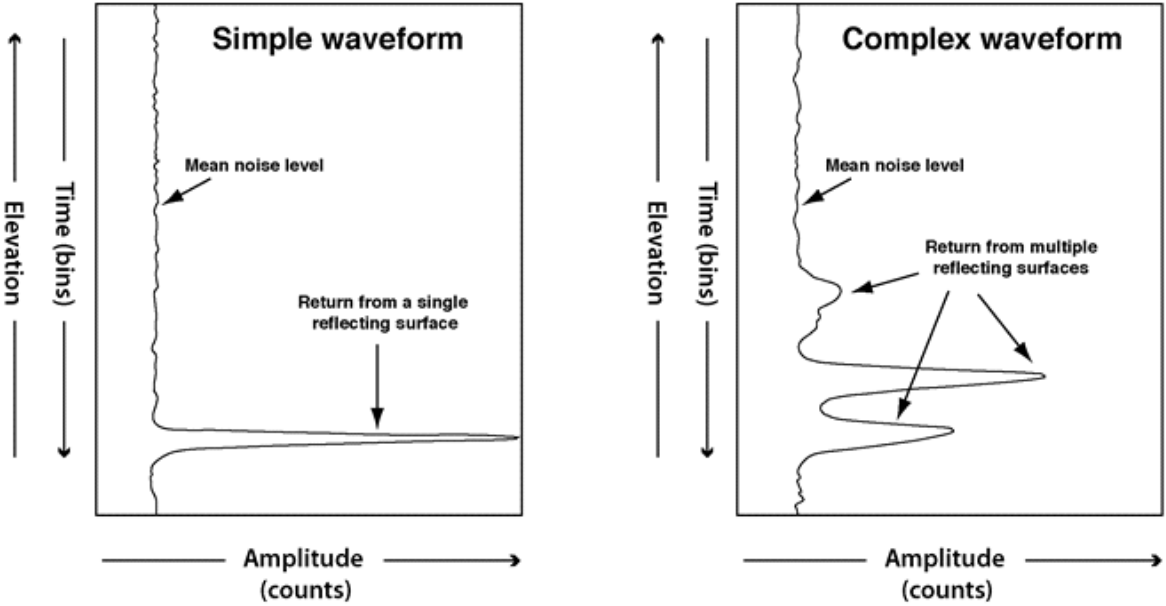

with h5py.File(l1b_i) as hf:
    rxwaveform = hf['RXWAVE'][i, :] # waveform
    elev_1215 = hf['Z1215'][i] # elevation ground
    elev_0 = hf['Z0'][i] # elevation top
c = len(rxwaveform) #
elev = np.linspace(elev_1215, elev_0, num=c)
# plot
plt.rcParams["figure.figsize"] = (3,10)
plt.xlabel("rxwaveform (counts)")
plt.ylabel("elevation (m)")
plt.plot(rxwaveform, elev, linestyle='--', marker='.',)
plt.show()

doi="10.5067/VP7J20HJQISD" # LVIS L2 doi
query = earthaccess.DataGranules().doi(doi)
query.params['campaign'] = 'bioscape'
l2 = query.get_all()
print(f'Granules found: {len(l2)}')

# index of granule with R2404_041222 datetime stamp
i = get_granule_index(l2, 'R2404_041222')
l2[i]

# download files
downloaded_files = earthaccess.download(l2[i], local_path="downloads")

l2_i = f'downloads/{path.basename(l2[i].data_links()[0])}'
with open(l2_i, 'r') as f:
    # print first 15 rows
    head = [next(f) for _ in range(15)]
    print(head)

def get_line_number(filename):
    """find number of header rows in LVIS L2A"""
    count = 0
    with open(filename, 'r') as f:
        for line in f:
            if line.startswith('#'):
                count = count + 1
                columns = line[1:].split()
            else:
                return count, columns

h_no, col_names = get_line_number(l2_i)
with open(l2_i, 'r') as f:
    l2a_df = pd.read_csv(f, skiprows=h_no, header=None, engine='python', sep=r'\s+')
    l2a_df.columns =  col_names
l2a_df

l2a_df.columns.values

l2a_shot_df = l2a_df[l2a_df['SHOTNUMBER'] == 54132593]
l2a_shot_df

elev_zg = l2a_shot_df.ZG.values[0]
elev_zh = l2a_shot_df.ZH.values[0]
rh40 = l2a_shot_df.RH40.values[0]
rh80 = l2a_shot_df.RH80.values[0]
rh100 = l2a_shot_df.RH100.values[0]
rh = l2a_shot_df.filter(like ='RH').drop('CHANNEL_RH', axis=1).values.tolist()[0]

# plotting
plt.rcParams["figure.figsize"] = (5,7)
rh_vals = l2a_shot_df.filter(like = 'RH').columns[:-1].str.strip('RH').astype(int).tolist()
fig, ax1 = plt.subplots()
ax1.plot(rh_vals, elev_zg+rh, alpha=0.3, marker='o', color='black', label='RH metrics' )
ax1.axhline(y=elev_zg+rh40,  color='g', linestyle='dotted', linewidth=2, label='RH40')
ax1.axhline(y=elev_zg+rh80,  color='g', linestyle='-.', linewidth=2, label='RH80')
ax1.axhline(y=elev_zg+rh100,  color='g', linestyle='--', linewidth=3, label='RH100')
ax1.set_xlabel("Percentile of waveform energy (%)")
ax1.set_ylabel("elevation (meters)")
ax1.legend(loc="lower right")
plt.show()

def convert_umm_geometry(gpoly):
    """converts UMM geometry to multipolygons"""
    multipolygons = []
    for gl in gpoly:
        ltln = gl["Boundary"]["Points"]
        points = [(p["Longitude"], p["Latitude"]) for p in ltln]
        multipolygons.append(Polygon(points))
    return MultiPolygon(multipolygons)

def convert_list_gdf(datag):
    """converts List[] to geopandas dataframe"""
    # create pandas dataframe from json
    df = pd.json_normalize([vars(granule)['render_dict'] for granule in datag])
    # keep only last string of the column names
    df.columns=df.columns.str.split('.').str[-1]
    # convert polygons to multipolygonal geometry
    df["geometry"] = df["GPolygons"].apply(convert_umm_geometry)
    # return geopandas dataframe
    return gpd.GeoDataFrame(df, geometry="geometry", crs="EPSG:4326")

gdf = convert_list_gdf(l2)
#plot
gdf[['BeginningDateTime','geometry']].explore(tiles=xyz, attr=attr)

poly_f = "assets/brackenburn.json"
poly = gpd.read_file(poly_f)
poly.explore(tiles=xyz, attr=attr, style_kwds={'color':'red', 'fill':False})

poly.geometry = poly.geometry.apply(orient, args=(1,))
# simplifying the polygon to bypass the coordinates
# limit of the CMR with a tolerance of .005 degrees
xy = poly.geometry.simplify(0.005).get_coordinates()

l2_poly = earthaccess.search_data(
    count=-1, # needed to retrieve all granules
    doi="10.5067/VP7J20HJQISD", # LVIS L2A doi
    temporal=("2023-10-01", "2023-11-30"), # Bioscape campaign dates
    polygon=list(zip(xy.x, xy.y))
)
print(f'Granules found: {len(l2_poly)}')

gdf = convert_list_gdf(l2_poly)
m = gdf[['BeginningDateTime','geometry']].explore(tiles=xyz, attr=attr,
                                              style_kwds={'fillOpacity':0.1})
m

downloaded_files = earthaccess.download(l2_poly, local_path="downloads")

# get header rows and column names
h_no, col_names = get_line_number(downloaded_files[0])
# read the LVIS L2A files
ddf = dd.read_csv(downloaded_files, skiprows=h_no, names=col_names,
                  header=None, sep=r'\s+')
# dask to pandas dataframe
df = ddf.compute()
# converting to geopandas
lvis_l2a_gdf = gpd.GeoDataFrame(df,
                                geometry=gpd.points_from_xy(df.GLON,
                                                            df.GLAT),
                                crs="EPSG:4326")
# clipping LVIS by polygon
lvis_l2a_gdf = gpd.sjoin(lvis_l2a_gdf, poly, predicate='within')

lvis_l2a_gdf[['RH100', 'geometry']].sample(frac=0.1, random_state=1).explore(
    "RH100", cmap = "YlGn", tiles=xyz, attr=attr, alpha=0.5, radius=10, legend=True)

fig, ax = plt.subplots(figsize=(7, 8))
plot_df = lvis_l2a_gdf.sample(frac=0.1, random_state=1).filter(like='RH').drop('CHANNEL_RH', axis=1).T
plot_df.index = plot_df.index.str.strip('RH').astype(int)
std_df = plot_df.std(axis=1)
median_df = plot_df.median(axis=1)
median_df.plot(ax=ax, alpha=0.5, style='o-')
ax.fill_between(plot_df.index, median_df - std_df, median_df + std_df, alpha=0.1)
ax.set_xlabel("Percentile of waveform energy (%)")
ax.set_ylabel("Height (m)")
plt.show()

# exporting
# lvis_l2a_gdf.geometry.to_file('lvis2.geojson', driver="GeoJSON")
# lvis_l2a_gdf.to_csv('lvis.csv')

harmony_client = Client()

concept_l2a = earthaccess.search_datasets(doi ='10.5067/GEDI/GEDI02_A.002')[0].concept_id()
concept_l2a

def get_concept_id(doi):
    """get concept id from DOI using earthaccess"""
    col = earthaccess.search_datasets(doi=doi)
    for ds in col:
        # check if Harmony trajectory subsets exists
        if 'S2836723123-XYZ_PROV' in ds.services().keys():
            return(ds.concept_id())

concept_l2a = get_concept_id('10.5067/GEDI/GEDI02_A.002')
concept_l2a

# harmony collection
collection_l2a = Collection(id=concept_l2a)

def create_var_names(variables):
    # gedi beams
    beams = ['BEAM0000', 'BEAM0001', 'BEAM0010', 'BEAM0011', 'BEAM0101', 'BEAM0110', 'BEAM1000', 'BEAM1011']
    # combine variables and beam names
    return [f'/{b}/{v}' for b in beams for v in variables]

# gedi variables
variables_l2a = create_var_names(['rh', 'quality_flag', 'land_cover_data/pft_class'])

# time range
temporal_range = {'start': datetime(2019, 4, 17),
                  'stop': datetime(2023, 3, 31)}

def submit_harmony(collection, variables):
    """submit harmony request"""
    request = Request(collection=collection,
                  variables=variables,
                  temporal=temporal_range,
                  shape=poly_f,
                  ignore_errors=True)
    # submit harmony request, will return job id
    subset_job_id = harmony_client.submit(request)
    return harmony_client.result_urls(subset_job_id, show_progress=True,
                                      link_type=LinkType.s3)

results = submit_harmony(collection_l2a, variables_l2a)

s3credentials = harmony_client.aws_credentials()

fs_s3 = s3fs.S3FileSystem(anon=False,
                          key=s3credentials['aws_access_key_id'],
                          secret=s3credentials['aws_secret_access_key'],
                          token=s3credentials['aws_session_token'])

def read_gedi_vars(beam):
    """reads through gedi variable hierarchy"""
    col_names = []
    col_val = []
    # read all variables
    for key, value in beam.items():
        # check if the item is a group
        if isinstance(value, h5py.Group):
            # looping through subgroups
            for key2, value2 in value.items():
                col_names.append(key2)
                col_val.append(value2[:].tolist())
        else:
            col_names.append(key)
            col_val.append(value[:].tolist())
    return col_names, col_val

# define an empty pandas dataframe
subset_df = pd.DataFrame()
# loop through the Harmony results
for s3_url in results:
    print(s3_url)
    with fs_s3.open(s3_url, mode='rb') as fh:
        with h5py.File(fh) as l2a_in:
            for v in list(l2a_in.keys()):
                if v.startswith('BEAM'):
                    c_n, c_v = read_gedi_vars(l2a_in[v])
                    # Appending to the subset_df dataframe
                    subset_df = pd.concat([subset_df,
                                           pd.DataFrame(map(list, zip(*c_v)),
                                                        columns=c_n)])

# remove duplicate columns
subset_df = subset_df.loc[:,~subset_df.columns.duplicated()].copy()
subset_df.head(2)

# create rh metrics column
rh = []
# loop through each percentile and create a RH column
for i in range(101):
    y = pd.DataFrame({f'RH{i}':subset_df['rh'].apply(lambda x: x[i])})
    rh.append(y)
rh = pd.concat(rh, axis=1)

# concatenate RH columns to the original dataframe
subset_df = pd.concat([subset_df, rh], axis=1)
# print the first row of dataframe
subset_df.head(2)

gedi_gdf = gpd.GeoDataFrame(subset_df,
                            geometry=gpd.points_from_xy(subset_df.lon_lowestmode,
                                                        subset_df.lat_lowestmode),
                                crs="EPSG:4326")
gedi_sub = gpd.sjoin(gedi_gdf, poly, predicate='within')
gedi_sub[gedi_sub.quality_flag==1].explore("RH100", cmap = "YlGn", tiles=xyz, attr=attr, alpha=0.5, radius=10, legend=True)

fig, ax = plt.subplots(figsize=(7, 10))
plot_df = gedi_sub[gedi_sub.quality_flag==1].filter(like='RH').T
plot_df.index = plot_df.index.str.strip('RH').astype(int)
plot_df.median(axis=1).plot(ax=ax, alpha=0.5, style='s:')
ax.set_xlabel("Percentile of waveform energy (%)")
ax.set_ylabel("Height (m)")
plt.show()

concept_l4c = get_concept_id('10.3334/ORNLDAAC/2338') # GEDI L4C DOI
# harmony collection
collection_l4c = Collection(id=concept_l4c)
# gedi variables
variables_l4c = create_var_names(['wsci', 'wsci_quality_flag'])
# define an empty pandas dataframe
subset_df2 = pd.DataFrame()
# submit harmony
results2 = submit_harmony(collection_l4c, variables_l4c)
# loop through the Harmony results
for s3_url in results2:
    print(s3_url)
    with fs_s3.open(s3_url, mode='rb') as fh:
        with h5py.File(fh) as l4c_in:
            for v in list(l4c_in.keys()):
                if v.startswith('BEAM'):
                    c_n, c_v = read_gedi_vars(l4c_in[v])
                    # Appending to the subset_df dataframe
                    subset_df2 = pd.concat([subset_df2,
                                           pd.DataFrame(map(list, zip(*c_v)),
                                                        columns=c_n)])

# remove duplicate columns
subset_df2 = subset_df2.loc[:,~subset_df2.columns.duplicated()].copy()
gedi_gdf2 = gpd.GeoDataFrame(subset_df2,
                                geometry=gpd.points_from_xy(subset_df2.lon_lowestmode,
                                                            subset_df2.lat_lowestmode),
                                crs="EPSG:4326")
gedi_sub2 = gpd.sjoin(gedi_gdf2, poly, predicate='within')
gedi_sub2[gedi_sub2.wsci_quality_flag==1].explore("wsci", cmap = "YlGn", tiles=xyz, attr=attr,
                                                  alpha=0.5, radius=10, legend=True)
